Kenmerken

Specificaties

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops, Other

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2022

Warranty of core components: 5 years

Core Components: Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC

Size: 12000*1700*3500mm

Power: 20KW

Warranty: 5 years

Productivity: 10000L/Hour

Weight (KG): 4500 kg

Basis informatie

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Standard Wooden Package

Supply Ability: 10 Set/Sets per Month

Productomschrijving

Products Description

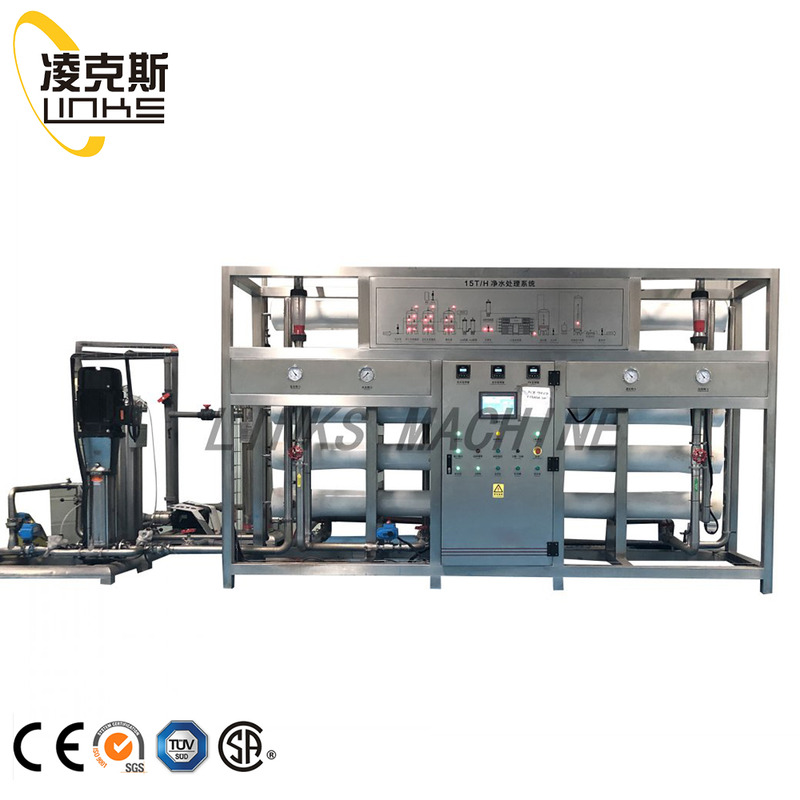

RO Water Treatment Reverse Osmosis System

Reverse osmosis (RO) is a kind of water purification technology that uses a semipermeable membraneunder pressure applied to remove ions, molecules, and larger particles , bactaria and so on from water, and is used in both industrial processes and the production of potable water.

Automatic Pure Water Treatment System With Reverse Osmosis Technology
Capacity	Capacity (Ton Per hour)	General power	Size (LWH)	Weight (kg)
RO-500L/H	0.5t	0.75kw	15509001820mm	350kg
RO-1000L/H	1t	1.5kw	19809001940mm	500kg
RO-2000L/H	2t	2kw	48007002050mm	700kg
RO-3000L/H	3t	5kw	60008002200mm	800kg
RO-4000L/H	4t	6.5kw	70009002400mm	1000kg
RO-5000L/H	5t	8kw	800010002700mm	1500kg
RO-6000L/H	6t	12kw	850016001920mm	2000kg
RO-8000L/H	8t	15kw	100018703000mm	4000kg
RO-10000L/H	10t	20kw	1200017003500mm	4500kg
RO-15000L/H	15t	25kw	1250017003500mm	6500kg
RO-20000L/H	20t	30kw	1300019003500mm	9000kg
RO-30000L/H	30t	35kw	1350023003800mm	12000kg

*Typical Reverse Osmosis Processing:

Raw water pump → Silica sand filter → Activated carbon filter→ Sodium ion exchanger → Security filter → High-pressure pump → Reverse osmosis system →Uv sterilizer→Ozone sterilizer →Finished Water tank 1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter 2. Silica Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on 3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on 4, WATER Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness. 5. Security filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity. 6. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa). 7. RO system-- main part of pure water treatment plant. The desaltation rate upto 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic. 8.UV sterilizer -- kill some bacteria that may also pass through the reverse osmosis 9.Ozone sterilizer -- Use ozone Kill bacteria not killed by UV 10.Finished water tank -- For filter water storage

Details Images

Main Features

1. The world's most advanced Reverse Osmosis technology, optimized design and exquisite production technics. 2. All in one compact design, well-chosen materials. 3. High salt rejection rate more than 99% , 4. stable performance, safe and reliable, up to date and ingenious design. low cleaning frequency. 5. On-line conductivity monitoring , ensure good quality of water output . 6. Automatic control system; easy installation,operation and maintenance;small size. 7. Precise design of technics and well-chosen material . 8. Long lifetime, low energy consume and low maintenance cost.

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Inverter	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	FESTO	Germany
Electrical parts	Schneider	France

Soft drinks line

Like Carbonated beverage , soda water ,energy drinks ... Capacity :1000bph~20000bph

Fruit Juice Line

Like Fruit juice ,NFC juice , juice with pulp ... Capacity:500bph~30000bph

Small bottle water line

Like still water / pure water / mineral water Capacity:1000bph~30000bph
